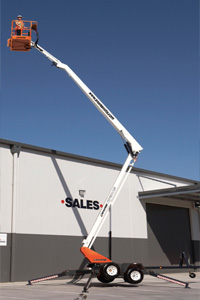

MHP15HD

  • Max. Working Height:15.2m
  • Max. Working Outreach:6.4m
  • Platform Capacity:227kg
  • Weight:1,760kg

Download Specifications (PDF)

Designed for the Australian market, the MHP15HD is a heavy duty trailer mounted boom lift which is fitted with a superb 5hp efficient engine for smooth and accurate performance.

Standard Features

  • A versatile jib with 140° rotation
  • Platform rotator allows operators to have greater versatility
  • A two man steel platform with a safe load rated at 227kgs
  • Proportional speed control
  • Heavy duty tow coupling
  • Heavy duty jockey wheel
  • Hydraulic disc brakes
  • Reliable gasoline engine with optional bi-energy power
  • 600V AC rated wire platform
  • Hour meter
  • Lockable hinged covers
  • Independently operated hydraulic outriggers with pot hole protection
Max Working Height

15.2 m

Platform Height

13.4m

Max Working Outreach

6.4m

Platform Size

1.25 x 0.78 x 1.07m

Outrigger Footprint

3.7 x 3.6m

Overall Width (outriggers extended)

3.7 m

Overall Width (outriggers stowed)

1.77m

Overall Length

7.45 m

Transport Height

2.1 m

Platform Capacity (SWL)

227 kg

Platform Capacity (SWL) with Rotator

200 kg

Max Wind Speed

45kph

Max. Towing Speed

80km/hr

Platform Levelling

Mechanical

Turntable Rotation

540° non-continuous

Tyres

185R15

Brakes

Hydraulic disc

Insulation Rating

Nil on standard models

Hydraulic System

Proportional electro/hydraulic

Max. Axle Capacity

2,000 kg

Trailer Tongue Weight

90kg

Power Source

Gasoline engine 5.5hp

Weight

1,760 kg

Options

  • Manual drive
  • 360° continuous rotation turntable
  • Flashing light
  • 110/240VAC GFCI power to platform
  • Platform rotator
  • Lifting lugs
  • Automatic stabilisers
  • 10.9m cut out switch
  • Diesel engine
  • 24V DC battery power
  • 110/240V AC motor & pump
  • Combinations of the above with gas or diesel to give a bi-energy power source

Working Envelope

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
