S9053RT

  • Max. working height: 17.9m
  • Platform capacity (SWL): 680kg
  • Stowed Height: 3.2m
  • Weight (without outriggers): 7,484kg

Download Specifications (PDF)

Add to quote

The new Snorkel S9053RT high capacity rough terrain scissor lift is a high-powered performer. Designed to tackle tough terrain with ease, its terrain capabilities is coupled with a large roll-out extension deck. This scissor lift features stabilizers as standard for sturdy versatility on all terrain. With high capacity and a sturdy construction, the S9053RT improves productivity on the job.

Standard Features

  • 4-wheel drive
  • 4 hydraulic outriggers with automatic levelling (S9053RT only)
  • Single powered deck extension
  • Proportional controls
  • Foam filled tyres
  • Power line to platform
  • Drive motion alarm
  • Descent alarm
  • Fold-down guardrails
  • Locking oscillating axle
  • Manual lowering valve
  • Flashing amber light
  • Dual lanyard attachment points
  • Hour meter & on-board diagnostics display
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Max Working Height

17.9m
Max Platform Height

15.9m
Platform Size (stowed)

3.95m x 2.28m
Platform Size (single deck extended)

4.95m x 2.28m
Platform Size (dual deck extended)

6.7m x 2.28m
Extension Deck Length

1.44m
Overall Width

2.28m
Overall length (without outriggers)

4.08m
Overall length (with outriggers)

4.77m
Stowed Height

3.2m
Min Height (guardrails folded)

2.33m
Ground Clearance

274mm
Platform Capacity (SWL)

680kg
Max Drive Height

13.1m
Max Wind Speed

12.5m/s
Max Drive Speed (stowed)

6.7km/h
Max Drive Speed (elevated)

0.8km/h
Raise/Lower Time

55/60 sec
Gradeability

50%
Max Stabilizer Leveling (front to rear)

7°
Max Stabilizer Leveling (side to side)

12˚
Inside Turning Radius

2.03m
Outside Turning Radius

5.28m
Tyres

12 x 33 foam filled
Controls

proportional joystick
Drive System

4 wheel drive
Power Source

Kubota diesel
Weight (without outriggers)

7,484kg
Weight (with outriggers)

8,829kg

Options

  • Special paint colours
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil
  • Cold weather package (block heater + battery warm up)
  • Single powered extension deck
  • Dual powered extension decks
  • Dual manual extension decks
  • Hydraulic generator 110V/240V
  • 12kW generator package
  • 4 hydraulic outriggers with automatic levelling (S9033RT + S9043RT only)
  • Snorkel OnSite™ telematics

Leveling Capabilities

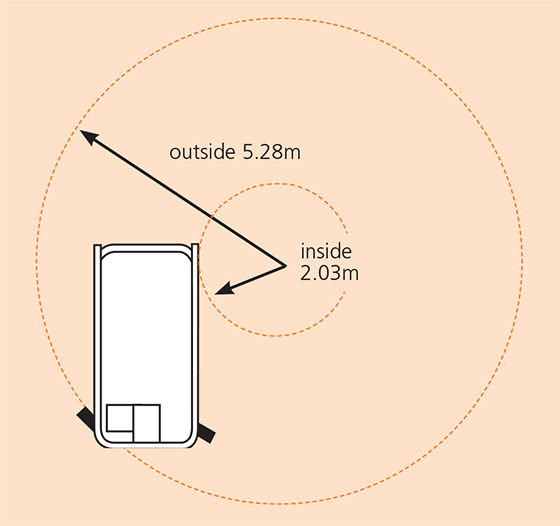

Snorkel S9033rt/S9043rt/S9053rt Turning Radius

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
