ML16M

  • Lift height (forks up): 4.9m
  • Lift height (forks down): 4.4m
  • Stowed Height: 1.59m
  • Weight: 135kg

Download Specifications (PDF)

The Snorkel ML16M mini material lift can handle heavy tasks. Quick-fold stabilizers offer safe and secure material lifting in industrial and warehouse applications. Heavy-duty non-marking casters are also fitted as standard. With a slim design, the ML16M can pass through a single doorway.

Standard Features

  • Stabilisers with non-marking swivel casters (ML20M)
  • Non-marking transport/loading wheels
  • Cable guard
  • Mast brake
  • Dual-handle, two-speed shift-on-the-fly winch
  • Metal cable pulleys with sealed bearings
  • Heavy-gauge aluminium extrusions
  • Heavy duty, non-marking casters
  • Crane attachment point
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Lift height (forks up)

4.9m

Lift height (forks down)

4.4m

Stowed width

0.77m

Stabiliser width

1.63m

Stowed Length

0.88m

Operating length

1.85m

Stowed Height

1.59m

Fork width (outside)

0.58m

Fork length

0.76m

Ground Clearance

60mm

Max. load capacity (0.36m load centre)

295kg

Max. load capacity (0.61m load centre)

195kg

Max. load capacity (1.07m load centre)

79kg

Min. load height

150mm

Winch (high speed)

13.1 cranks/m

Winch (low speed)

49.2 cranks/m

Weight

135kg

Options

  • Special paint colours
  • Adjustable forks
  • Boom
  • Pipe cradle
  • Fork extensions
  • Load platform
  • Stabilisers with non-marking swivel casters (ML12M/ML16M)
  • Smart latch

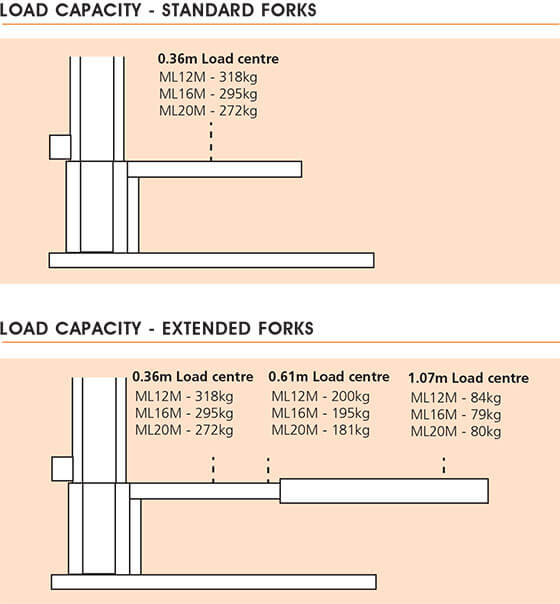

Load Capacity

ML12M/ML18M/ML24M Load Capacity

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
