A46JRT

  • Max. working height: 16.3m
  • Platform capacity (SWL): 227kg
  • Stowed Height: 2.16m
  • Weight: 7,540 kg

Download Specifications (PDF)

Snorkel GuardTM Brochure (PDF)

Class-leading diesel articulated boom lift delivering a superb working envelope and excellent 4 wheel drive performance. Zero tailswing and a tight turning radius make this lift ideal for working in confined spaces or on a busy jobsite, and the powerful diesel engine and high grip tyres ensure that the A46JRT can tackle almost any type of terrain.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • Tri-entry platform
  • Drive motion alarm
  • Multi-function proportional controls
  • Oscillating front axle (A46JRT)
  • Power line to platform
  • Zero tailswing
  • Hour meter & on-board diagnostics display
  • Foam filled tyres (A46JRT)
  • Non-marking tyres (A46JE)
  • Battery charge indicator (A46JE)
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Max Working Height

16.3m

Max Platform Height

14.3m

Max Working Outreach

7.35m

Clearance Height at Max Outreach

7.67m

Platform Size

1.0m x 1.83m

Chassis Width

2.1m

Overall Length

5.7m

Stowed Height

2.16m

Ground Clearance

330mm

Platform Capacity (SWL)

227kg

Max Drive Height

14.3m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

6.8km/h

Max Drive Speed (elevated)

1.3km/h

Jib Length

1.5m

Jib Arc

140°

Platform Rotation

160°

Turret Rotation

360º non-continuous

Tailswing

0m

Raise/Lower Time

101/98 seconds

Gradeability

45%

Inside Turning Radius

0.8m

Outside Turning Radius

3.17m

Tyres

High grip, foam-filled 355/55D625NHS 17.5

Controls

proportional

Drive System

4 wheel drive

Power Source

Kubota V1505 24.9hp diesel

Battery Charger

n/a

Weight

7,540kg

Options

  • Special paint colours
  • AC generator 110V/240V 2kW (A46JRT)
  • Airline to platform (A46JRT)
  • Non-marking tyres (A46JRT)
  • Environmental hydraulic oil
  • 1.52m aluminium platform with swing gate
  • Aircraft package
  • Deluxe aircraft package
  • Cold weather package
  • Extreme cold weather package (A46JRT)
  • Extreme environment package
  • Light package
  • Utility package (A46JRT)
  • Tool tray (A46JRT)
  • Pipe rack
  • Snorkel OnSite™ telematics

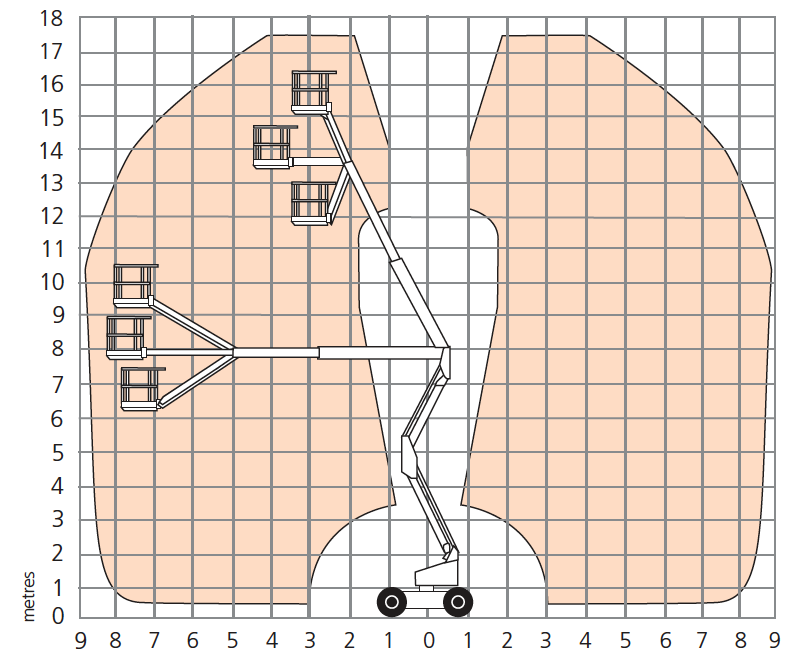

Working Envelope

A46JE/A46JRT Working Envelope

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
