TB126J

TB126J

  • Max. working height: 40.4m
  • Platform capacity (SWL): 227kg
  • Stowed Height: 3.2m
  • Weight: 19,000kg

Download Specifications (PDF)

Snorkel GuardTM Brochure (PDF)

Add to quote

The Snorkel TB126J is the largest telescopic boom lift in the Snorkel product range. Designed to lift 227kg to a working height of 40.4m, it is equipped with a jib boom for added flexibility, high performance 4 wheel drive, a hydraulic powered extending rear axle and an envelope management system.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • 2.0m 135º jib (TB126J only)
  • 4-wheel drive, braking & fixed front steering
  • Hydraulic platform rotation
  • 360º continuous turntable rotation
  • Hydraulic extended rear axles w/ boom interlocks
  • Built-in jack for raising chassis
  • Flashing amber light
  • Proportional drive lift, swing, extend & jib (if equipped)
  • Foam filled tyres
  • Power line to platform
  • Dual lanyard attachment points
  • 3.5º tilt alarm
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Max Working Height

40.4m
Max Platform Height

38.4m
Max Working Outreach

19.2m
Platform Size

2.44m x 0.91m
Overall Width

2.6m
Operational Width

3.9m
Overall Length

13.6m
Stowed Height

3.2m
Ground Clearance

330mm
Platform Capacity (SWL)

227kg
Max Drive Height

38.4m
Max Wind Speed

12.5m/s
Max Drive Speed (stowed)

4.6 km/h
Max Drive Speed (elevated)

0.24 km/h
Jib Length

2.0m
Jib Arc

135° ( 70°/-65°)
Platform Rotation

180°
Turret Rotation

360° continuous
Tailswing (axles retracted)

2.04m
Tailswing (axles extended)

1.38m
Raise/Lower Time

208/215 seconds
Gradeability

30%
Inside Turning Radius

5.8m
Outside Turning Radius

10.1m
Tyres

445-65 D22.5 foam filled lug
Controls

proportional joystick
Drive System

4 wheel drive
Power Source

Kubota V2403 48kW/65hp diesel – Tier 4 Final
Weight

19,000kg

Options

  • Special paint colours
  • Airline to platform
  • Non-marking tyres
  • AC generator 110V/24V 2kW
  • Cold weather package
  • Extreme cold weather package
  • Extreme environment package
  • Light package
  • Tow kit
  • Glazier package
  • Utility package
  • 12kW generator package
  • 12kW generator/welder package
  • Environmental hydraulic oil
  • Tool tray
  • Pipe rack
  • Snorkel OnSite™ telematics

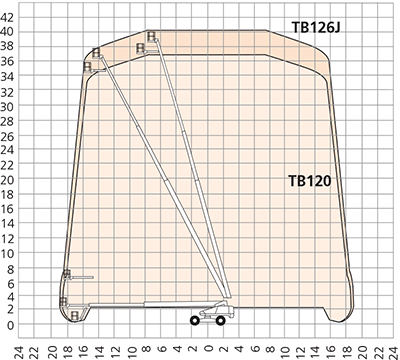

Working Envelope

TB120/TB126J Working Environment

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
