TM12

TM12

  • Max. working height: 5.6m
  • Platform capacity (SWL): 227kg
  • Stowed Height: 1.62m
  • Weight: 830kg

Download Specifications (PDF)

Add to quote

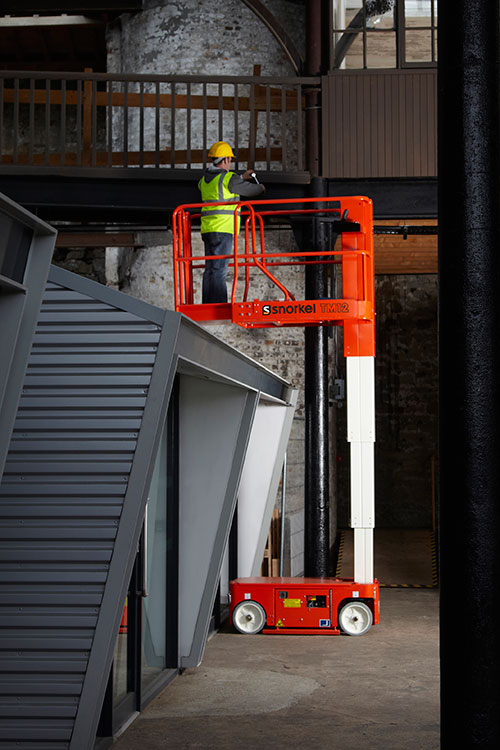

The Snorkel TM12 is the original self-propelled mast lift. Recently enhanced with hydraulic powered descent and a 0.5m roll-out deck extension as standard, the TM12 continues to set the standard in low-level elevating work platforms. еКA versatile and compact self-propelled mast lift – perfect for maintenance duties as it fits easily through a single doorway and can be carried in passenger elevators.

Standard Features

  • Roll-out deck extension
  • Hydraulically powered descent
  • Proportional controls
  • Saloon-door style entry gates
  • Descent & tilt alarms
  • Emergency lowering at chassis controls
  • 2 person + equipment capacity indoor
  • 1 person + equipment capacity outdoor
  • Non-marking rubber tyres
  • Crane lift points
  • Horn
  • Hour meter & on-board diagnostics display
  • Selectable motion alarm
  • Integrated battery charger 90V-240V 25A
  • 2 year parts & labour, 5 year structural warranty
Max Working Height

5.6m
Max Platform Height

3.6m
Platform Size (stowed)

0.74m x 0.96m
Platform Size (extended)

0.74m x 1.46m
Extension Deck Length

0.5m
Overall Width

0.76m
Overall Length

1.34m
Stowed Height

1.62m
Ground Clearance

76mm
Platform Capacity (SWL)

227kg
Max Drive Height

3.6m
Max Wind Speed

12.5m/s
Max Drive Speed (stowed)

3.2km/h
Max Drive Speed (elevated)

0.43 km/h
Raise/Lower Time

16/19 seconds
Gradeability

25%
Max Operating Slope (side to side)

1.5º
Max Operating Slope (front to back)

2°
Inside Turning Radius

0.36m
Outside Turning Radius

1.55m
Tyres

279mm. non-marking rubber
Parking Brake

2 wheel, spring-applied, hydraulically-released with manual overdrive
Drive System

dual front hydraulic motors
Controls

proportional
Power Source

24V 4hp DC electric motor 4-220 Ah batteries
Battery Charger

18 amp
Weight

830kg

Options

  • Special paint colours
  • Environmental hydraulic oil
  • 2° side to side operating slope upgrade (machine weight 910kg)

Turning Radius

TM12 Turning Radius

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
