TL39

  • Max. working height: 13.5m
  • Platform capacity (SWL): 215kg
  • Stowed Height: 2.01m
  • Weight: 1,680kg

Download Specifications (PDF)

Standard Features

  • Articulating/telescopic boom configuration
  • Hydraulic outriggers
  • Electric controls at platform
  • Integral road lighting board
  • Integrated automatic battery charger 110V-230V
  • Power line to platform
  • Hydraulic basket rotate
  • 2 year parts & labour, 5 year structural warranty
Max Working Height

13.5m

Max Platform Height

11.5m

Max Working Outreach

6.4m

Platform Width

1.24m

Platform Depth

0.75m

Outrigger Footprint

4.0m x 3.6m

Towing Width

1.61m

Towing Length

5.1m

Stowed Height

2.01m

Platform Capacity (SWL)

215kg

Max Wind Speed

12.5m/s

Turret Rotation

540° non-continuous

Tyres

185R14C

Controls

electric over hydraulic, variable speed

Power Source

24V DC electric

Power Options

bi-energy or diesel engine, 230V mains

Weight

1,680kg

Options

  • Special paint colours (one colour)
  • Special paint colours (two colours)
  • Flashing amber light
  • Work lights in platform
  • Airline to platform
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil

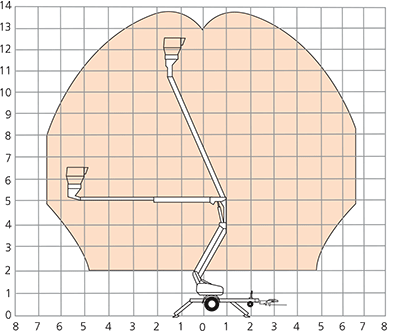

Working Envelope

TL39 Working Envelope

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
