TB80

  • Max. working height: 26.4m
  • Platform capacity (SWL): 227kg
  • Stowed Height: 2.9m
  • Weight: 16,480kg

Download Specifications (PDF)

Snorkel GuardTM Brochure (PDF)

The Snorkel TB80 is a robust diesel telescopic boom lift, which can lift 227kg to a working height of 26.4m. Equipped with powerful 4 wheel drive and 4 wheel steer, the TB80 is designed to handle the toughest construction applications.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • 4-wheel drive, steer & crab steer
  • Hydraulic platform rotation
  • 360º continuous turntable rotation
  • Drive motion alarm
  • Flashing amber light
  • Foam filled tyres
  • Proportional drive, boom lift, swing & extend
  • Rheostat control for jib & platform level
  • Power line to platform
  • Tri-entry platform
  • Dual lanyard attachment points
  • Horn
  • Hour meter & on-board diagnostics display
  • 3.5º tilt alarm
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Max Working Height

26.4m

Max Platform Height

24.4m

Max Working Outreach

21.7m

Platform Size

0.91m x 2.44m

Overall Width

2.6m

Overall Length

11.8m

Stowed Height

2.9m

Ground Clearance

330mm

Platform Capacity (SWL)

227kg

Max Drive Height

24.4m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

4.8km/h

Max Drive Speed (elevated)

1.0 km/h

Jib Length

n/a

Jib Arc

n/a

Platform Rotation

170°

Turret Rotation

360° continuous

Tailswing

1.9m

Raise/Lower Time

70/65 sec

Gradeability

40%

Inside Turning Radius

2.4m

Outside Turning Radius

4.7m

Tyres

15 x 625 foam filled lug

Controls

proportional joystick

Drive System

4 wheel drive

Power Source

Kubota V2403 48kW/65hp diesel – Tier 4 Final

Weight

16,480kg

Options

  • Special paint colours
  • Airline to platform
  • Non-marking tyres
  • AC generator 110V/240V 2kW
  • Cold weather package
  • Extreme cold weather package
  • Extreme environment package
  • Light package
  • Tow kit
  • Glazier package
  • Utility package
  • 12kW generator package
  • 12kW generator/welder package
  • Environmental hydraulic oil
  • Tool tray
  • Pipe rack
  • Snorkel OnSite™ telematics

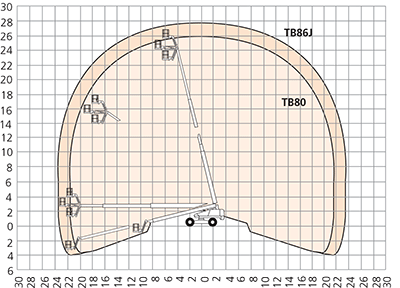

Working Envelope

TB80/TB86J Working Envelope

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
