SR626

  • Max. lift height: 5.79m
  • Max. lift capacity: 2,600kg
  • Stowed Height: 1.93m
  • Weight: 4,700kg

Download Specifications (PDF)

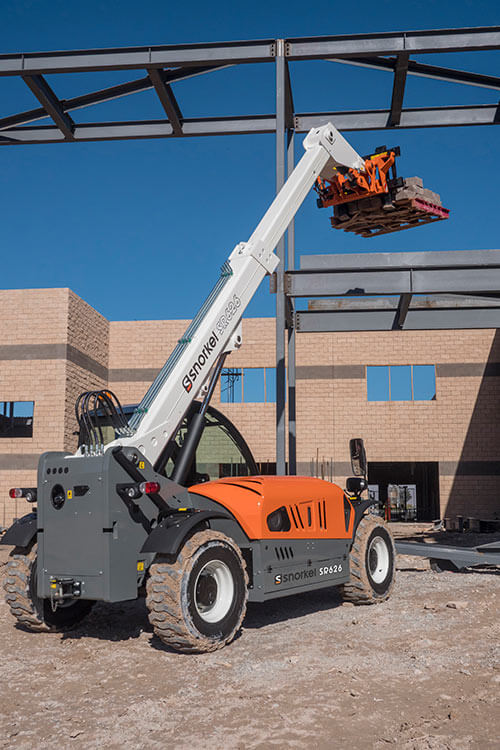

The Snorkel SR626 compact rough terrain telehandler delivers top performance in a compact design. Featuring full-time 4-wheel drive, power assisted steering and proportional joystick, the telehandler is packed with power and precision to lift materials in any application.

Standard Features

  • Full-time 4-wheel drive
  • 4-wheel steer – selectable front, crab & coordinated
  • Selectable front, crab & coordinated steering modes
  • Auxiliary hydraulic circuit on the boom
  • Variable speed hydrostatic drive
  • Fender (set of 4)
  • Fully enclosed cab with heat
  • Proportional joystick
  • Illuminated gauge and switch panels
  • Colour LCD display with machine & engine diagnostics
  • Flashing beacon
  • Fixed 1200mm carriage with 1200mm floating forks
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Max. Lift Capacity

2,600kg

Max. Lift Height

5.79m

Forward reach

3.2m

Overall Width

1.89m

Stowed Height

1.93m

Length to Fork Face

4.19m

Wheelbase

2.5m

Ground Clearance

220mm

Max. Drive Speed

27km/h

Raise/Lower Time

6.9 / 5 seconds

Hydraulic flow (Per Minute)

70L

Hydraulic Pressure

230bar

Hydraulic Oil Capacity

70L

Fuel Capacity

80L

Outside Turning Radius

3.25m

Tires

12 x 16.5

Power Source

Yanmar 52kW Stage V diesel

Weight

4,700kg

Options

  • Special paint colours
  • Euro coupling
  • Air conditioning
  • Grammer air suspension seat
  • Front & rear LED work lights (4)
  • Work lights on boom (2)
  • Heated right exterior mirror
  • Additional rear mirror
  • Cab front glass protection grille
  • Non-marking tyres 12-16.5
  • Engine preheater 220V
  • Boom suspension & floating boom
  • Bluetooth radio, handsfree & USB socket
  • Sun curtain
  • Fixed tow hook 6 ton
  • Snorkel OnSiteā„¢ telematics

Working Envelope

SR626 Working Envelope

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
