SR1442

  • Max. lift height: 13.5m
  • Max. lift capacity: 4,200kg
  • Stowed Height: 2.56m
  • Weight: 11,150kg

Download Specifications (PDF)

The Snorkel SR1442 rough terrain telehandler is reliably rugged. Equipped with a powerful Deutz Tier 4 Final diesel engine, this telehandler is designed to deliver sturdy performance on all terrain. It also features outriggers and frame sway as standard for maximum control.

Standard Features

  • Full-time 4-wheel drive
  • 4-wheel steer – selectable front, crab & coordinated steering modes
  • Auxiliary hydraulic circuit on the boom
  • Variable speed hydrostatic drive
  • Fender (4)
  • Fully enclosed cab with heat
  • Proportional joystick controls
  • Adjustable suspension seat
  • Illuminated gauge & switch panels
  • Colour LCD display with machine & engine diagnostics
  • Flashing beacon
  • Fixed 1500mm carriage & 1500mm floating forks
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Max. Lift Capacity

4,200kg

Max. Lift Height

13.5m

Forward reach

9.5m

Overall Width

2.3m

Stowed Height

2.56m

Length to Fork Face

6.45m

Wheelbase

2.95m

Ground Clearance

350mm

Max. Drive Speed

30km/h

Raise/Lower Time

13 / 9.5 seconds

Frame Leveling

11°

Hydraulic flow (Per Minute)

120L

Hydraulic Pressure

230bar

Hydraulic Oil Capacity

150L

Fuel Capacity

120L

Outside Turning Radius

4.2m

Tires

405/70 – 24

Power Source

Deutz 55.4kW Stage V/Tier 4 Final diesel

Weight

11,150kg

Options

  • Special paint colours
  • Air conditioning
  • Grammer air suspension seat
  • Front & rear LED work lights (4)
  • Work lights on boom (2)
  • Heated right external mirror
  • Additional rear mirror
  • Cab front glass protection grille
  • Engine preheater 220V
  • Boom suspension & floating boom
  • Bluetooth radio, handsfree & USB socket
  • Sun curtain
  • Fixed tow hook 6 ton
  • Snorkel OnSite™ telematics

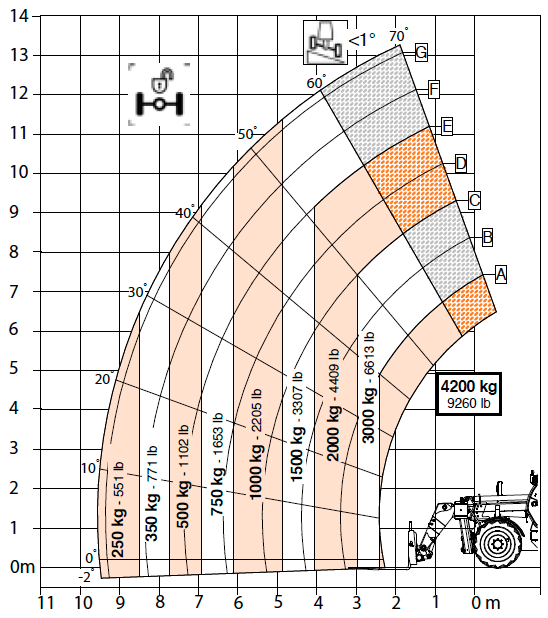

Load Chart

SR1442 Load Chart

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
