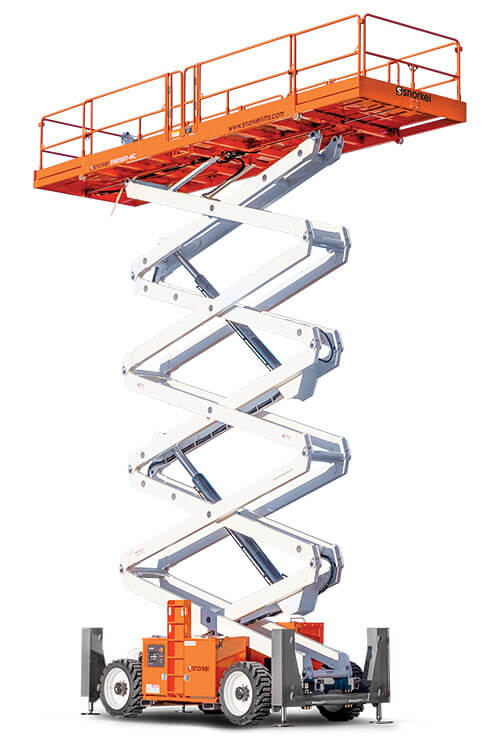

S9070RT-HC

  • Max. working height: 23.3m
  • Platform capacity (SWL): 907kg
  • Stowed Height: 3.43m
  • Weight: 11,566kg

Download Specifications (PDF)

The Snorkel S9070RT-HC is the largest ultra-capacity rough terrain scissor lift in North America. Featuring a twin extension deck as standard, it combines a large platform working area with an extra-wide pallet gate and high lifting capacity for increased productivity on the job. Added rough terrain capabilities makes the S9070RT-HC a premier performer on all jobsites.

Standard Features

  • 4-wheel drive
  • 4 hydraulic stabilizers with automatic levelling
  • Dual powered extension decks
  • Proportional controls
  • Foam filled tyres
  • Power line to platform
  • Drive motion alarm
  • Descent alarm
  • Fold-down guardrails
  • Locking oscillating axle
  • Manual lowering valve
  • Flashing amber light (x2)
  • Dual lanyard attachment points
  • Hour meter & on-board diagnostics display
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Max Working Height

23.3m

Max Platform Height

21.3m

Platform Size (stowed)

5.49m x 2.28m

Platform Size (extended)

2.28m x 8.23m

Extension Deck Length

1.37m

Overall Width

2.28m

Overall Length

4.87m

Stowed Height

3.43m

Min Height (guardrails folded)

2.5m

Ground Clearance

356mm

Platform Capacity (SWL)

907kg

Max Drive Height

13.1m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

6.7km/h

Max Drive Speed (elevated)

0.96 km/h

Raise/Lower Time

70/40 seconds

Gradeability

50%

Max Stabilizer Leveling (front to rear)

Max Stabilizer Leveling (side to side)

12˚

Inside Turning Radius

2.4m

Outside Turning Radius

5.6m

Tyres

13 x 36 foam filled

Controls

proportional joystick

Drive System

4 wheel drive

Power Source

Kubota diesel

Weight

11,566kg

Options

  • Special paint colours
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil
  • Cold weather package (block heater + battery warm up)
  • Hydraulic generator 110V/240V
  • 12kW generator package
  • Snorkel OnSite™ telematics

Leveling Capabilities

S9031RT-HC/S9043RT-HC Leveling Capabilities

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
