S3210P

  • Max. working height: 5.0m
  • Platform capacity (SWL): 240kg
  • Stowed Height: 1.8m
  • Weight: 470kg

Download Specifications (PDF)

The Snorkel S3210P push-around scissor lift is rated for outdoor low level work. It offers a durable design for tough site conditions with no stabilizers required. Ideal for low level working at height, this mini scissor lift easily passes through standard doorways.

Standard Features

  • Outdoor-rated
  • Auto brake system
  • Tilt sensor
  • Saloon-door style entry gates
  • Integrated battery charger 90V – 240V
  • Battery charge indicator
  • Forklift pockets
  • Emergency lowering system
  • Non-marking casters
  • Slide-out service trays
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Max Working Height

5.0m

Max Platform Height

3.0m

Platform size (outside)

1.1m x 0.52m

Overall Width

0.81m

Overall Length

1.2m

Stowed Height

1.8m

Platform Capacity (SWL)

240kg

Max Wind Speed

12.5m/s

Raise/Lower Time

19/26 seconds

Power Source

12V DC battery

Charger

Built in multi-voltage (90V – 240V)

Weight

470kg

Options

  • Special paint colours
  • Environmental hydraulic oil
  • Snorkel OnSiteā„¢ telematics

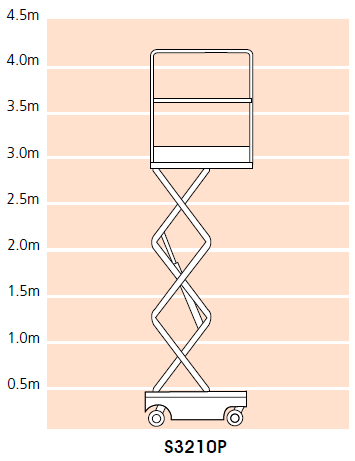

Platform Heights

S3210P Platform Height

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
