• Max. working height: 5.0m
  • Platform capacity (SWL): 240kg
  • Stowed Height: 1.8m
  • Weight: 370kg

Download Specifications (PDF)

The Snorkel S3010P is an innovative push-around mini scissor lift, which provide a cost-effective way to safely work at low level heights indoors.

Designed to withstand the demands of construction sites and the rental industry, the Snorkel S3010P is a heavy-duty and robust mini scissor lift, which is easy to use and simple to maintain. The S3010P can lift 240kg to a working height of 5.0m.

Standard Features

  • Auto brake system
  • Tilt sensor
  • Saloon-door style entry gates
  • Integrated battery charger 90V-240V
  • Battery charge indicator
  • Forklift pockets
  • Emergency lowering system
  • Non-marking casters
  • Slide-out service trays
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Max Working Height


Max Platform Height


Platform size (outside)

1.1m x 0.52m

Overall Width


Overall Length


Stowed Height


Platform Capacity (SWL)


Max Wind Speed


Raise/Lower Time

19/26 seconds

Power Source

12V DC battery


Built in multi-voltage (90V – 240V)




  • Special paint colours
  • Environmental hydraulic oil
  • Snorkel OnSiteā„¢ telematics

Platform Heights

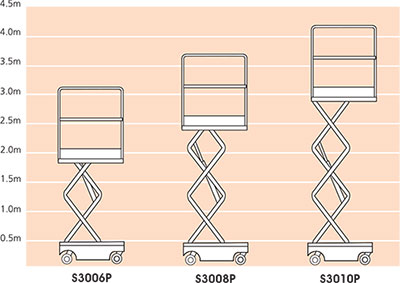

S3006P/S3008P/S3010P Platform Heights


All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
