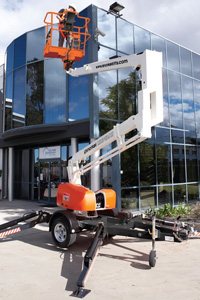

MHP14AT

  • Max. Working Height: 13.5m
  • Max. Working Outreach: 6.4m
  • Platform Capacity: 215kg
  • Weight: 1,460kg

Download Specifications (PDF)

Standard Features

  • Heavy duty tow coupling
  • Hydraulic stabilisers
  • Two man steel platform
  • Two person capacity
  • Heavy duty jockey wheel
  • Hydraulic disc brakes
  • Reliable petrol engine
  • Outrigger boom safety interlocks
  • Platform foot switch
  • Spare wheel
  • LED taillights
  • Lifting lugs
  • Automatic stabilisers
  • Rotating basket mount
  • Basket overload
Max Working Height

13.5m

Max Platform Height

11.5m

Max Working Outreach

6.4m

Platform Size

1.15m x 0.7m

Overall Width (outriggers extended)

3.6m

Overall Width (outriggers stowed)

1.6m

Overall Length

4.9m

Transport Height

2.0m

Platform Capacity (SWL)

215kg

Max Wind Speed

12.5m/s

Levelling

auto

Turntable Rotation

540ยบ non-continuous

Tyres

185 R14 102/100P

Brakes

Hydraulic over-run non free reversing

Insulation Rating

Nil

Trailer Tongue Weight

80kg

Power Source

Honda petrol

Weight

1,460kg

Options

  • Custom colours
  • Platform work lights
  • Air line to platform
  • Flashing light
  • Height lockout
  • 240V 110V outlet in platform
  • Battery isolate switch
  • Diesel and bi-energy options

Working Envelope

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
