MB26J

  • Max. working height: 9.8m
  • Platform capacity (SWL): 215kg
  • Stowed Height: 1.98m
  • Weight: 2,660kg

Download Specifications (PDF)

Snorkel GuardTM Brochure (PDF)

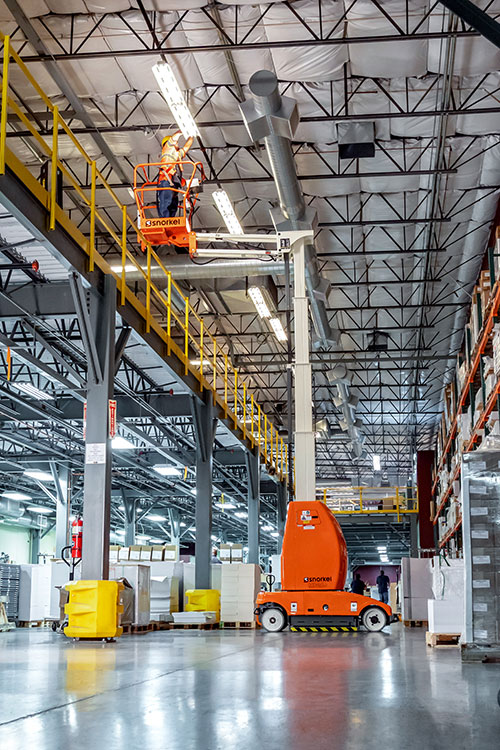

The Snorkel MB26J is an electric mast boom lift which can lift 215kg to a working height of 9.8m. Fitted with a jib boom, the MB26J is highly maneuverable and is ideal for applications requiring ‘up and over’ capabilities, particularly in confined spaces.

Standard Features

  • Ultra-tight inside turning radius
  • Proportional controls
  • Tilt alarm
  • Non-marking tyres
  • Hydraulic pothole protection system
  • 2 persons indoor
  • 1 person outdoor
  • Self-seeking automatic battery charger
  • Power line to platform
  • Hour meter & on-board diagnostics display
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Max Working Height

9.8m

Max Platform Height

7.8m

Max Working Outreach

3.0m

Platform Size

0.78m x 0.73m

Overall Width

1.0m

Stowed Length

2.8m

Stowed Height

1.98m

Ground Clearance

100mm

Platform Capacity (SWL)

215kg

Max Drive Height

7.75m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

3.2km/h

Max Drive Speed (elevated)

0.48km/h

Jib Length

1.4m

Jib Arc

130°

Mast Rotation

360°

Raise/Lower Time

56/27sec

Gradeability

25%

Inside Turning Radius

0.3m

Outside Turning Radius

2.1m

Tyres

323mm non-marking rubber

Controls

proportional controls

Drive System

electro/hydraulic

Power Source

4 x 6V x 375Ah batteries

Battery Charger

Self-seeking automatic battery charger

Weight

2,660kg

Options

  • Special paint colours
  • Flashing amber light
  • Environmental hydraulic oil
  • Snorkel OnSite™ telematics

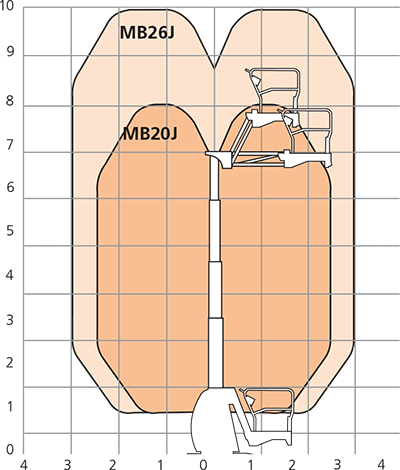

Working Envelope

MB20J/MB26J Working Envelope

Video

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
