EVP16A

  • Max. Working Height: 15.8m
  • Max. Working Outreach: 7.1m
  • Platform Capacity: 200kg

Download Specifications (PDF)

  • All steel boom and base construction
  • Stabiliser/boom interlock
  • Emergency manual bleed down
  • Number code wiring
  • Automatic self-levelling stabilizers
  • Hour meter
  • Full steel deck with perimeter handrails
  • Fail safe hydraulics with check valves
  • Rotating basket mount
Max Working Height

15.8m

Max Platform Height

13.8m

Max Horizontal Outreach

7.1m

Platform Length

0.61m

Platform Width

0.07m

Overall Width

1.94m

Overall Length

6.75m

Stowed Height

2.8m

Platform Capacity (SWL)

200kg

Levelling

auto

Turntable rotation

540ยบ non-continuous

Power Source

Petrol or truck mounted PTO

Hydraulic system

Live hydraulic system

Options

  • AC outlet in platform
  • AC motorpower source
  • Flashing light on boom
  • LV insulation
  • Safety harness and lanyard
  • Hydraulic outlet in platform
  • Airline to platform
  • Full deck and access way
  • 10.9m height cutout switch

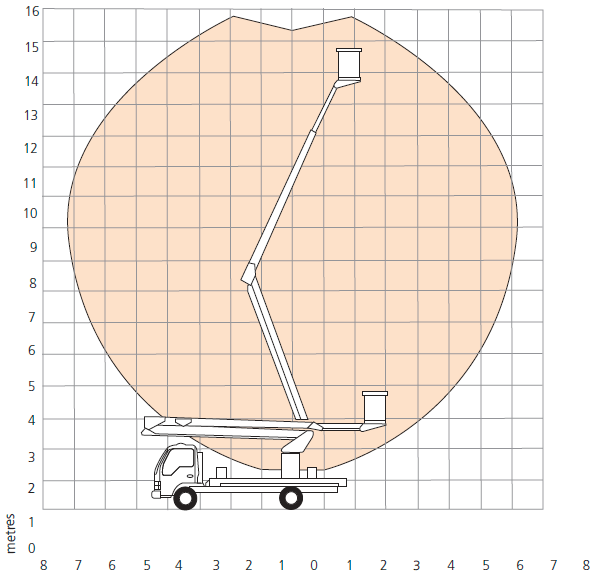

Working Envelope

EPV16A Working Envelope

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
