AB60J

  • Max. working height: 20.1m
  • Platform capacity (SWL): 227kg
  • Stowed Height: 2.51m
  • Weight: 11,249kg

Download Specifications (PDF)

Snorkel GuardTM Brochure (PDF)

The Snorkel AB60J is a tough and reliable articulated boom lift. Featuring powerful 4 wheel drive, this boom is simple to operate and maintain, and is ideal for both maintenance and construction applications.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • Hydraulic platform rotation
  • 4-wheel drive
  • Drive motion alarm
  • Power line to platform
  • Flashing amber light
  • Proportional drive, lift and swing
  • Dual lanyard attachment points
  • Foam filled tyres
  • Horn
  • 3.5º tilt alarm
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Max Working Height

20.1m

Max Platform Height

18.1m

Max Working Outreach

13.1m

Clearance Height at Max Outreach

5.94m

Platform Size

2.44m x 0.91m

Overall Width

2.4m

Overall Length

8.87m

Stowed Height

2.51m

Ground Clearance

300mm

Platform Capacity (SWL)

227kg

Max Drive Height

18.1m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

5.1 km/h

Max Drive Speed (elevated)

0.96 km/h

Jib Length

1.8m

Jib Arc

75°

Platform Rotation

180°

Turret Rotation

360° continuous

Tailswing (elevated)

0m

Tailswing (stowed)

1.52m

Raise/Lower Time

125/121 sec

Gradeability

20%

Inside Turning Radius

5.24m

Outside Turning Radius

6.17m

Tyres

15 x 19.5 foam filled

Controls

Proportional joystick drive, lift & rotation

Drive System

4 wheel drive

Power Source

Kubota V2403 48kW/65hp diesel – Tier 4 Final

Weight

11,249kg

Options

  • Special paint colours
  • AC generator 110V/240V 2kW
  • Non marking tyres
  • Airline to platform
  • Aircraft package
  • Deluxe aircraft package
  • Cold weather package
  • Extreme cold weather package
  • Extreme environment package
  • Light package
  • Tow kit
  • Glazier package
  • Utility package
  • Tool tray
  • Pipe rack
  • Environmental hydraulic oil
  • Snorkel OnSite™ telematics

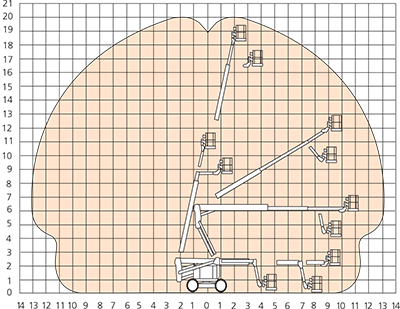

Working Envelope

AB60J Working Envelope

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
