Snorkel A38E

A38E

  • Max. working height: 13.5m
  • Platform capacity (SWL): 215kg
  • Stowed Height: 2.0m
  • Weight: 3,880kg

Download Specifications (PDF)

Snorkel GuardTM Brochure (PDF)

Add to quote

The class-leading Snorkel A38E is a lightweight, durable and reliable electric articled boom lift. Designed for internal and external use, this lift benefits from compact dimensions and an articulating/telescopic boom configuration for maximum maneuverability and versatility.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • Proportional one-handed controls
  • Hydraulic platform rotation
  • Minimal front boom overhang
  • Ultra-tight inside turning radius
  • Power line to platform
  • Tilt alarm and cut-out
  • 2 person indoor
  • 1 person outdoor
  • Direct DC drive series wired wheel motors
  • Non-marking tyres
  • Duplicate boom controls at ground level
  • Hour meter & on-board diagnostics display
  • Flashing amber light
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Max Working Height

13.5m
Max Platform Height

11.5m
Max Working Outreach

6.1m
Clearance Height at Max Outreach

5.4m
Platform Size

0.69m x 1.11m
Overall Width

1.5m
Overall Length

4.1m
Stowed Height

2.0m
Ground Clearance

120mm
Platform Capacity (SWL)

215kg
Max Drive Height

11.5m
Max Wind Speed

12.5m/s
Max Drive Speed (stowed)

4.0m/h
Max Drive Speed (elevated) Forward

0.5kmh
Max Drive Speed (elevated) Reverse

0.4kmh
Platform Rotation

90° ( 45°/-45°)
Turret Rotation

360º non-continuous
Tailswing (elevated)

0m
Tailswing (stowed)

1.4m
Raise/Lower Time

83/68 sec
Gradeability

36%
Inside Turning Radius

1.12m
Outside Turning Radius

2.4m
Tyres

22 x 9 16 non-marking rubber
Controls

proportional
Drive System

direct drive DC
Power Source

8 x 6V, 220Ah batteries
Battery Charger

100-200V/15A
Weight

3,880kg

Options

  • Special paint colours
  • Environmental hydraulic oil
  • Snorkel OnSite™ telematics

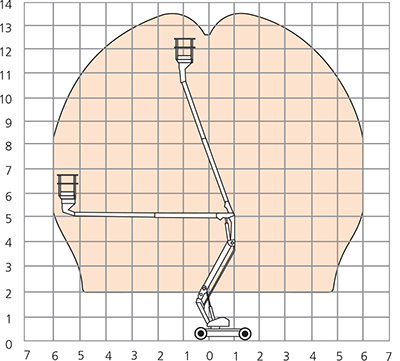

Working Envelope

A38E Working Envelope

Video

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
