2100SJ

  • Max. working height: 66.0m
  • Platform capacity (Unrestricted): 349kg
  • Stowed Height: 3.0m
  • Weight: 41,730kg

Download Specifications (PDF)

Snorkel GuardTM Brochure (PDF)

2020 Rental Editor's Choice Awards 2100SJ

The Snorkel 2100SJ is Snorkel’s largest diesel telescopic boom lift with patented design features. With an impressive reach and lift height, exceptional up and over capabilities offer a maximum horizontal reach up to 35.1m with a 9.1m jib boom. Two control panels on the platform allow for safe operation while working at height. Robust 4-wheel drive and multiple steering modes deliver superb rough terrain performance with a tight inside turning radius for excellent maneuverability. Its innovative wheel extension and narrow wheelbase provide stability on the job and ease of transportation.

Standard Features

  • Snorkel Guard™ secondary guarding system
  • Secondary platform controls
  • 5 steering modes – front axle, rear axle, crab, complementary & lateral
  • All proportional controls
  • Remote lower control panel
  • Tool tray
  • Hydraulic platform rotation
  • 360º continuous turntable rotation
  • Flashing amber light
  • Dual lanyard attachment points
  • Foam filled tyres
  • 4-wheel drive
  • Power line to platform
  • Snorkel OnSite™ telematics – 60 months
  • Drive motion alarm
  • 2 year parts & labour, 5 year structural warranty
  • CE compliant
Max Working Height

66.0m

Max Platform Height

64.0m

Max Horizontal Outreach

35.1m

Platform Size

2.4m x 0.9m

Overall Width

2.5m

Operational Width (extended)

5.5m

Stowed Length

23m

Transport Length

15.5m

Stowed Height

3.0m

Ground Clearance

355mm

Platform Capacity - Unrestricted

349kg

Platform Capacity - Restricted

454kg

Max Drive Height

64.0m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

4.0km/h

Max Drive Speed (elevated)

0.2km/h

Jib Length

9.1m

Jib Arc

128º (-55° to +73°)

Platform Rotation

150°

Superstructure Rotation (continuous)

360°

Tailswing (axles retracted)

2.05m

Tailswing (axles extended)

0.7m

Raise/Lower Time

5/5.5 min

Gradeability

35%

Inside Turning Radius (axles retracted)

3.0m

Inside Turning Radius (axles extended)

2.6m

Outside Turning Radius (axles retracted)

5.0m

Outside Turning Radius (axles extended)

6.4m

Tyres

445/50-710 foam filled 24 ply

Controls

proportional joystick

Drive System

4 wheel drive

Working envelope volume

0.2 million m³

Power Source

Kubota V3800, 115hp diesel – Stage V

Weight

41,730kg

Options

  • Special paint colours
  • Airline to platform
  • Cold weather package
  • Extreme cold weather package
  • Extreme environment package
  • Light package
  • Glazier package
  • Environmental hydraulic oil
  • AC generator package 110V/240V

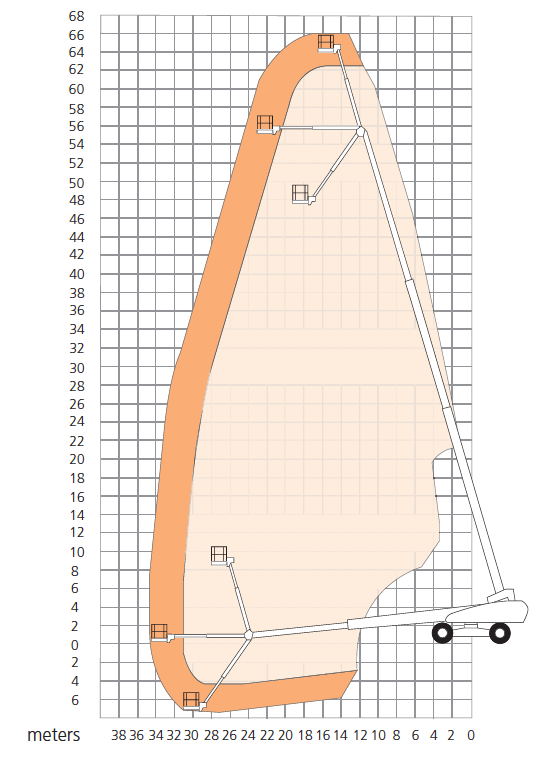

Working Envelope

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
