UL32

  • Max. working height: 11.7m
  • Overall width: 0.74m
  • Platform capacity (SWL): 136kg
  • Weight(AC): 435kg

Download Specifications (PDF)

The Snorkel UL32 is a robust push-around mast lift, safely lifts one person plus tools to a working height of 11.7m. The lift can be easily pushed into position, and can pass through standard doorways thanks to its innovative tilt-back system. The patented ‘Girder Lock’ telescopic mast design provides a very stable platform, even at full elevation. The UL32 is ideal for interior maintenance, particularly in sports hall, auditoriums and atriums.

Standard Features

  • Patented Girder Lock telescopic mast system
  • Integrated tilt-back system
  • Ground level entry
  • EZ loader system for transport
  • Outrigger interlock indicators
  • Integrated battery charger (DC only)
  • Non-marking wheels and casters
  • 2 year parts & labour, 5 year structural warranty
Max Working Height

11.7m

Max Platform Height

9.7m

Platform Length

0.56m

Platform Width

0.66m

Outrigger Footprint

2.06m x 1.99m

Overall Width

0.74m

Overall Length

1.32m

Stowed Height

2.51m

Tilt Back Height

1.95m

Tilt Back Length

2.64m

Platform Capacity (SWL)

136kg

Max Wind Speed

0m/s

Raise/Lower Time

57/26 seconds

Wheels

250mm x 64mm rear, 150mm casters front

Controls

push button

Wall Access

356mm

Power Source (AC)

120/220V AC 50HZ

Power Source (DC)

1 X 12V 105Ah battery

Weight (AC)

435kg

Weight (DC)

465kg

Options

  • Special paint colours
  • Tool tray
  • Laser locator
  • Environmental hydraulic oil

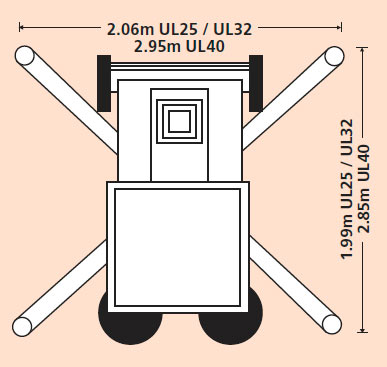

Outrigger Footprint

UL25/UL32/UL40 Outrigger Footprint

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
