TL37J

  • Max. working height: 12.9m
  • Platform capacity (SWL): 215kg
  • Stowed Height: 2.1m
  • Weight: 1,586kg

Download Specifications (PDF)

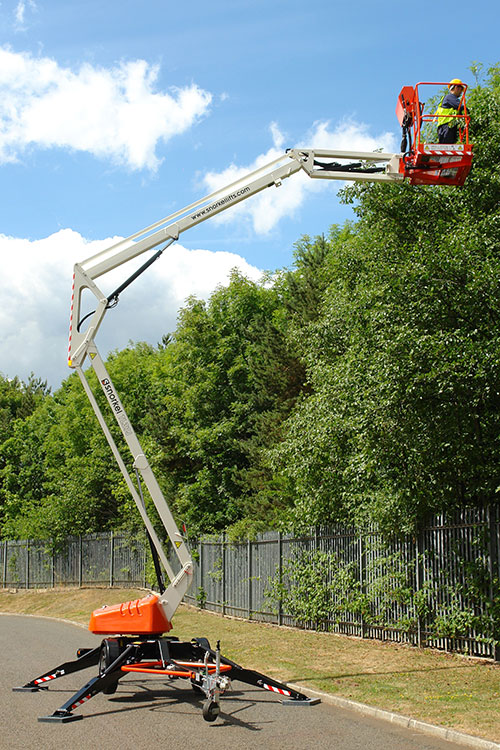

The Snorkel TL37J is a high specification trailer mounted boom lift which offers an excellent working envelope, including a jib boom for additional flexibility. This feature-packed lift also includes hydraulic outriggers for easy set up, and proportional controls for simple and smooth operation.

Standard Features

  • 1.3m (4´ 3˝) jib with 130° working arc
  • In-line boom design for maximum rigidity
  • Hydraulic outriggers
  • Cycle protection guards
  • Hand pump emergency lowering from platform
  • Power line to platform
  • Proportional live hydraulic controls
  • Automatic reversing and overrun braking
  • Integral road lighting board
  • 2 year parts & labour, 5 year structural warranty
Max Working Height

12.9m

Max Platform Height

10.9m

Max Working Outreach

5.6m

Platform Width

1.12m

Platform Depth

0.7m

Outrigger Footprint

3.9m x 3.3m

Towing Width

1.61m

Towing Length

6.4m

Stowed Height

2.1m

Platform Capacity (SWL)

215kg

Max Wind Speed

12.5m/s

Jib Length

1.3m

Jib Arc

130°

Platform Rotation

160°

Turret Rotation

640° non-continuous

Tyres

185R14C

Controls

hydraulic proportional

Power Source

24V DC battery

Battery

4 x 6V 225Ah

Power Options

bi-energy (petrol & battery) power or 230V mains power

Weight

1,586kg

Options

  • Special paint colours
  • Friction drive assist package
  • Flashing amber light
  • Work lights in platform
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil

Working Envelope

TL37J Working Envelope

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
