MHP13/35

  • Max. Working Height:12.6m
  • Max. Working Outreach:5.6m
  • Platform Capacity:227kg
  • Weight:1,360kg

Download Specifications (PDF)

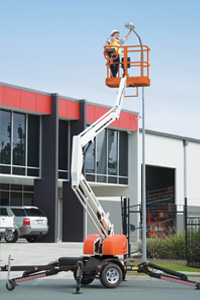

Built for the Australian market, the Snorkel MHP13/35 is a heavy duty trailer mounted boom lift, with a robust steel platform capable of lifting two people to a working height of 12.6m. Ideal for a wide range of construction, maintenance and landscaping applications.

Standard Features

  • High strength steel boom and base construction
  • Proportional speed control
  • Heavy duty tow coupling
  • Heavy duty jockey wheel
  • Hydraulic disc brakes
  • Reliable gasoline engine with optional bi-energy power
  • Versatile jib boom (+70° to -70°)
  • Articulating boom sections allow for up to and over reach manoeuvres
  • 600V AC rated wire platform
  • A two man steel platform with a safe load rated at 250kgs standard
  • Outrigger / boom safety interlocks
  • Lockable operated hydraulic outriggers
  • Independently operated hydraulic outriggers
  • Independently operated outriggers
  • Platform rotator
  • Lifting lugs
  • Automatic stabilisers
Max Working Height

12.6 m

Max. Platform Height

10.6 m

Max. Horizontal Outreach

5.6m at 6m

Platform Size

1.25 x 0.78 x 1.07m

Outrigger Footprint

3.7 x 3.9m

Overall Width (outriggers extended)

3.7 m

Overall Width (outriggers stowed)

1.58m

Overall Length

5.99 m

Transport Height

2.05 m

Platform Capacity (SWL)

227 kg

Max Wind Speed

45kph

Platform Levelling

Mechanical

Turntable Rotation

540° non-continuous

Tyres

185 R14

Brakes

Hydraulic disc

Max. Axle Capacity

1,750 kg

Trailer Tongue Weight

65 kg

Power Source

Gasoline engine 5.5hp

Hydraulic System

Proportional electro/hydraulic

Weight

1,360 kg

Options

  • Flashing light
  • 110/240VAC GFCI power to platform
  • Diesel engine
  • 24V DC battery power
  • 110/240V AC motor & pump
  • Combinations of the above with gas or diesel to give a bi-energy power source

Working Envelope

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel New Zealand provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate Snorkel operators manual for detailed instructions on the proper use and maintenance.
